Thermostat Wire Color Coding

Understanding thermostat wire color coding is crucial for anyone looking to install or replace a thermostat. This guide will walk you through the basics of thermostat wiring, the standard color codes, and how to properly connect your thermostat wires. Whether you're a DIY enthusiast or a professional, this information will help ensure a smooth and safe installation process.

Table of Contents

Understanding Thermostat Wiring

Thermostat wiring is the backbone of your HVAC system, allowing the thermostat to control heating and cooling functions. The wires connect the thermostat to the HVAC system, enabling communication between the two. Each wire serves a specific purpose, and understanding these functions is essential for proper installation.

Standard Thermostat Wire Color Coding

While there are variations, most thermostats follow a standard wire color coding system. Here are the common wire colors and their functions:

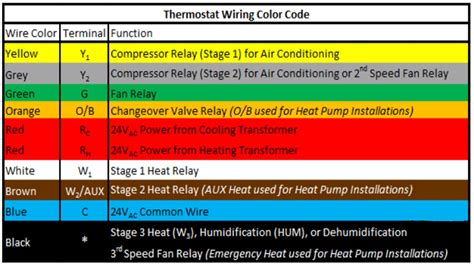

Wire Color	Function
Red	24-volt hot wire from the transformer ®
White	Heating (W)
Yellow	Cooling (Y)
Green	Fan (G)
Blue	Common wire ©
Orange	Heat pump (O/B)
Brown	Heat pump (O/B)

These colors are standard, but it's important to note that some systems may use different colors or additional wires. Always refer to your specific thermostat and HVAC system manuals for accurate information.

Identifying Your Thermostat Wires

Before you begin, it’s crucial to identify the wires connected to your current thermostat. Here’s how to do it:

Turn off the power to your HVAC system at the circuit breaker.

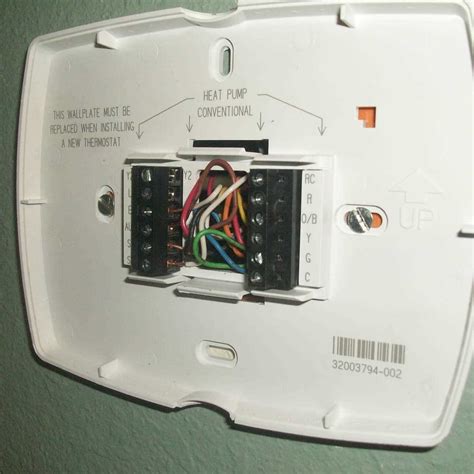

Remove the faceplate of your old thermostat to expose the wires.
Take a photo of the wiring for reference.
Label each wire with a piece of tape and a marker, noting the terminal it is connected to.

This step is essential to ensure you reconnect the wires correctly to your new thermostat.

Connecting Your Thermostat Wires

Once you have identified and labeled your wires, you can begin connecting them to your new thermostat. Follow these steps:

Turn off the power to your HVAC system.
Remove the old thermostat and disconnect the wires.
Mount the new thermostat base to the wall, ensuring it is level.
Connect the wires to the corresponding terminals on the new thermostat. Refer to the thermostat manual for specific instructions.
Secure the wires with wire nuts or the provided connectors.
Attach the faceplate to the thermostat base.
Turn the power back on and test the thermostat.

If your thermostat requires a common wire (C wire), ensure it is connected properly. The C wire provides continuous power to the thermostat, which is necessary for smart thermostats and those with advanced features.

🔧 Note: If your system does not have a C wire, you may need to use a C wire adapter or power extender kit. These devices allow you to add a C wire to your system without extensive rewiring.

Troubleshooting Common Issues

Even with careful installation, issues can arise. Here are some common problems and their solutions:

Thermostat not powering on: Check that all wires are securely connected and that the power is turned on at the circuit breaker.
Heating or cooling not working: Ensure that the wires are connected to the correct terminals. Refer to your thermostat manual for the correct wiring diagram.
Fan not working: Verify that the fan wire (G) is connected properly. If the fan is controlled by a separate switch, ensure it is turned on.

If you encounter persistent issues, consult a professional HVAC technician to diagnose and fix the problem.

Advanced Thermostat Features

Modern thermostats offer advanced features that can enhance comfort and energy efficiency. Understanding these features can help you get the most out of your thermostat. Some advanced features include:

Programmable Schedules: Allows you to set different temperatures for various times of the day, ensuring optimal comfort and energy savings.
Smart Home Integration: Connects with other smart devices, allowing you to control your thermostat remotely via a smartphone app or voice commands.
Energy Monitoring: Tracks your energy usage and provides insights into how to save energy and reduce costs.
Humidity Control: Monitors and adjusts indoor humidity levels for added comfort.

These features can significantly improve your HVAC system's performance and your overall comfort. Make sure to explore the settings and capabilities of your new thermostat to take full advantage of these benefits.

When installing a smart thermostat, ensure that your home's Wi-Fi network is secure and that the thermostat is placed within range of the router for reliable connectivity.

🔧 Note: Some smart thermostats require a C wire for proper operation. If your system does not have a C wire, you may need to use a C wire adapter or power extender kit.

Safety Precautions

Working with electrical components can be dangerous. Always follow these safety precautions:

Turn off the power to your HVAC system at the circuit breaker before beginning any work.
Use insulated tools to avoid electrical shock.
Avoid touching bare wires or exposed electrical components.
If you are unsure about any aspect of the installation, consult a professional HVAC technician.

Safety should always be your top priority when working with electrical systems.

By following these guidelines and understanding thermostat wire color coding, you can successfully install or replace your thermostat. This knowledge will help ensure that your HVAC system operates efficiently and effectively, providing comfort and energy savings for years to come.

In summary, understanding thermostat wire color coding is essential for a successful thermostat installation. By identifying your wires, connecting them correctly, and troubleshooting common issues, you can ensure that your thermostat works properly. Additionally, exploring advanced features and following safety precautions will help you get the most out of your thermostat and maintain a comfortable and energy-efficient home.
