How Does Tpms Work

Tire pressure monitoring systems (TPMS) are crucial components in modern vehicles, designed to enhance safety and efficiency. Understanding how does TPMS work is essential for drivers who want to ensure their vehicles are operating at peak performance. This system continuously monitors the air pressure in your tires and alerts you if the pressure falls below the recommended level. By maintaining proper tire pressure, you can improve fuel efficiency, extend the life of your tires, and reduce the risk of accidents caused by underinflated or overinflated tires.

Table of Contents

What is TPMS?

TPMS stands for Tire Pressure Monitoring System. It is an electronic system designed to monitor the air pressure inside the pneumatic tires on various types of vehicles. The system is equipped with sensors that detect changes in tire pressure and transmit this information to the vehicle’s onboard computer. There are two main types of TPMS: direct and indirect.

Types of TPMS

Understanding the different types of TPMS is crucial for comprehending how does TPMS work. The two primary types are:

Direct TPMS: This system uses sensors mounted inside the tires to directly measure the air pressure. These sensors transmit data to the vehicle’s computer, which then alerts the driver if the pressure is too low.
Indirect TPMS: This system relies on the vehicle’s anti-lock braking system (ABS) to monitor tire pressure indirectly. It compares the rotational speed of each wheel to detect any differences that might indicate underinflation.

How Does TPMS Work?

To fully grasp how does TPMS work, it’s important to delve into the mechanics of both direct and indirect systems.

Direct TPMS

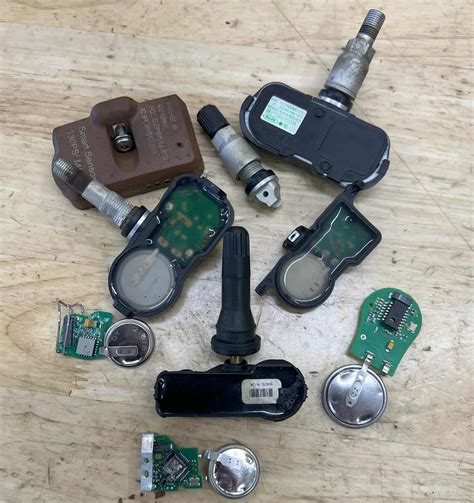

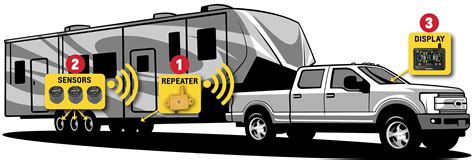

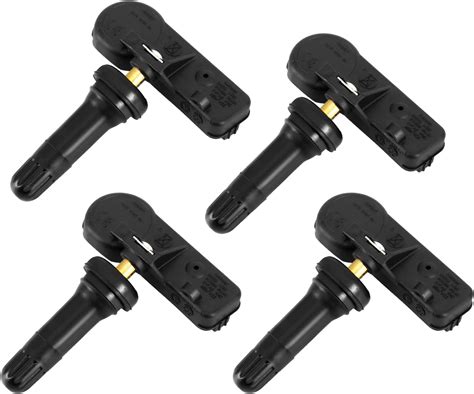

Direct TPMS uses sensors that are mounted directly on the tire valve stem or inside the tire. These sensors measure the air pressure and temperature inside the tire and transmit this data to the vehicle’s onboard computer. The system typically operates using radio frequency (RF) signals to send the information.

The process can be broken down into the following steps:

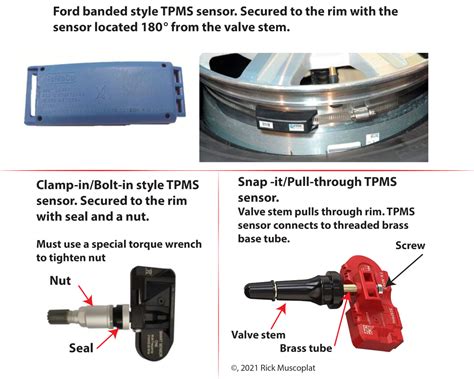

Sensors are installed inside the tires, either on the valve stem or inside the tire itself.
The sensors continuously monitor the air pressure and temperature.
When the pressure falls below the recommended level, the sensor transmits a signal to the vehicle’s computer.

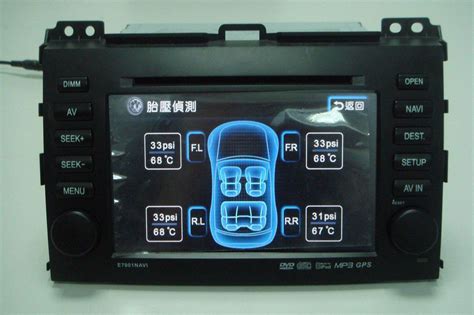

The onboard computer processes the signal and triggers a warning light on the dashboard.
The driver is alerted to check and adjust the tire pressure as needed.

Indirect TPMS

Indirect TPMS, on the other hand, does not use sensors inside the tires. Instead, it relies on the vehicle’s existing systems to monitor tire pressure. This system uses the anti-lock braking system (ABS) and the wheel speed sensors to detect changes in tire pressure.

The process involves the following steps:

The ABS system monitors the rotational speed of each wheel.
Underinflated tires have a smaller diameter and rotate faster than properly inflated tires.
The system compares the rotational speeds of all four wheels.
If a significant difference is detected, the system assumes that one or more tires are underinflated.
A warning light is triggered on the dashboard to alert the driver.

Benefits of TPMS

TPMS offers numerous benefits that enhance both safety and efficiency. Some of the key advantages include:

Improved Safety: Properly inflated tires reduce the risk of blowouts and accidents caused by underinflated or overinflated tires.
Enhanced Fuel Efficiency: Maintaining the correct tire pressure can improve fuel efficiency by reducing rolling resistance.
Extended Tire Life: Properly inflated tires wear more evenly, extending their lifespan and saving you money on replacements.
Environmental Impact: By improving fuel efficiency, TPMS helps reduce carbon emissions, contributing to a greener environment.

Maintenance and Troubleshooting

Regular maintenance and troubleshooting are essential for ensuring that your TPMS functions correctly. Here are some tips to keep your system in optimal condition:

Regular Checks: Periodically check your tire pressure using a reliable gauge to ensure it matches the manufacturer’s recommendations.
Sensor Replacement: Direct TPMS sensors have a limited lifespan and may need to be replaced periodically. Follow the manufacturer’s guidelines for replacement intervals.
Battery Replacement: Some TPMS sensors are battery-powered. Replace the batteries as needed to ensure continuous operation.
System Reset: If you receive a warning light but your tires are properly inflated, you may need to reset the TPMS. Consult your vehicle’s manual for instructions on how to do this.

🔧 Note: Always refer to your vehicle's owner manual for specific instructions related to your TPMS. Different vehicles may have unique procedures for resetting or maintaining the system.

Common Issues and Solutions

While TPMS is designed to be reliable, there are some common issues that drivers may encounter. Understanding these problems and their solutions can help you maintain your system effectively.

Warning Light Issues

If the TPMS warning light comes on, it indicates that one or more tires are underinflated. Here are some steps to troubleshoot the issue:

Check the tire pressure using a reliable gauge.
Inflate the tires to the recommended pressure.
If the light remains on, there may be a problem with the TPMS sensors. Consult a professional for further diagnosis.

Sensor Malfunctions

Direct TPMS sensors can sometimes malfunction due to battery failure or other issues. If you suspect a sensor problem, consider the following:

Check the battery life of the sensors.
Replace the batteries if necessary.
If the problem persists, consult a professional to diagnose and replace the faulty sensors.

System Reset

If you receive a warning light but your tires are properly inflated, you may need to reset the TPMS. Here are some general steps to reset the system:

Locate the TPMS reset button, usually found under the steering wheel or in the glove compartment.
Press and hold the reset button for a few seconds until the warning light turns off.
If the light does not turn off, consult your vehicle’s manual for specific reset instructions.

🔧 Note: Always ensure that your tires are properly inflated before attempting to reset the TPMS. Resetting the system without addressing the underlying issue may result in continued warnings.

Future of TPMS

As technology continues to advance, TPMS is also evolving to provide even greater benefits. Future developments in TPMS may include:

Advanced Sensors: New sensor technologies that offer more accurate and reliable measurements.
Integration with Smartphones: TPMS systems that can send alerts directly to your smartphone, allowing for real-time monitoring and notifications.
Predictive Maintenance: Systems that can predict when tires are likely to fail, allowing for proactive maintenance and reducing the risk of accidents.

These advancements will further enhance the safety and efficiency of vehicles, making TPMS an even more valuable component in modern automotive technology.

TPMS is a vital system that plays a crucial role in maintaining vehicle safety and efficiency. By understanding how does TPMS work, drivers can ensure their tires are properly inflated, reducing the risk of accidents and extending the life of their tires. Regular maintenance and troubleshooting are essential for keeping the system in optimal condition, and future advancements promise even greater benefits. Whether you have a direct or indirect TPMS, staying informed about its operation and maintenance will help you get the most out of your vehicle.
