240 V Outlet

Understanding the intricacies of a 240 V outlet is crucial for anyone dealing with electrical systems, whether for residential, commercial, or industrial purposes. This type of outlet is designed to handle higher voltage and current, making it suitable for heavy-duty appliances and machinery. In this post, we will delve into the specifics of a 240 V outlet, including its types, applications, installation guidelines, and safety considerations.

Table of Contents

What is a 240 V Outlet?

A 240 V outlet is an electrical receptacle designed to provide 240 volts of power. This is significantly higher than the standard 120-volt outlets commonly found in homes. The higher voltage allows for the operation of larger appliances and equipment that require more power, such as electric dryers, ranges, and air conditioners.

Types of 240 V Outlets

There are several types of 240 V outlets, each designed for specific applications. The most common types include:

NEMA 10-30: This type is often used for electric dryers and ranges. It has three prongs and provides 30 amps of current.
NEMA 14-30: This is a four-prong outlet commonly used for electric dryers, ranges, and other high-power appliances. It provides 30 amps of current.
NEMA 14-50: This type is often used for electric vehicle charging stations and large appliances. It provides 50 amps of current.
NEMA 6-50: This is a three-prong outlet used for welding machines and other industrial equipment. It provides 50 amps of current.

Applications of 240 V Outlets

The primary applications of a 240 V outlet include:

Electric Dryers and Ranges: These appliances require a significant amount of power to operate efficiently, making a 240 V outlet essential.
Air Conditioners: Central air conditioning units and some window units require a 240 V outlet to function properly.
Electric Vehicle Charging: With the rise of electric vehicles, 240 V outlets are increasingly used for home charging stations.
Welding Machines: Industrial welding equipment often requires a 240 V outlet to provide the necessary power.
Large Appliances: Other large appliances, such as water heaters and certain types of pumps, may also require a 240 V outlet.

Installation Guidelines for 240 V Outlets

Installing a 240 V outlet involves several steps and requires a good understanding of electrical systems. Here is a general guide to the installation process:

Safety First: Always turn off the power at the main circuit breaker before beginning any electrical work.
Choose the Right Outlet: Select the appropriate type of 240 V outlet based on the appliance or equipment you plan to use.
Run the Wiring: Run the necessary wiring from the circuit breaker to the location of the outlet. Ensure the wiring is properly sized for the current requirements.
Install the Outlet Box: Mount the outlet box securely to the wall or surface where the outlet will be installed.
Connect the Wires: Connect the hot wires to the brass screws, the neutral wire to the silver screw, and the ground wire to the green screw on the outlet. Ensure all connections are tight and secure.
Mount the Outlet: Attach the outlet to the box and secure it in place.
Test the Outlet: Turn the power back on and test the outlet with a voltage tester to ensure it is functioning correctly.

🔧 Note: Always follow local electrical codes and regulations when installing a 240 V outlet. If you are unsure about any aspect of the installation process, consult a licensed electrician.

Safety Considerations for 240 V Outlets

Working with a 240 V outlet involves handling high voltage, which can be dangerous if not done correctly. Here are some important safety considerations:

Use Proper Tools: Always use insulated tools designed for electrical work to minimize the risk of shock.
Wear Protective Gear: Use gloves, safety glasses, and other protective gear to protect yourself from potential hazards.
Avoid Overloading: Do not overload the outlet by plugging in too many devices or using appliances that exceed the outlet’s current rating.
Regular Inspections: Regularly inspect the outlet and wiring for any signs of damage or wear. Replace any damaged components immediately.
Grounding: Ensure that the outlet is properly grounded to protect against electrical shocks.

Common Issues with 240 V Outlets

Despite their robustness, 240 V outlets can encounter issues over time. Some common problems include:

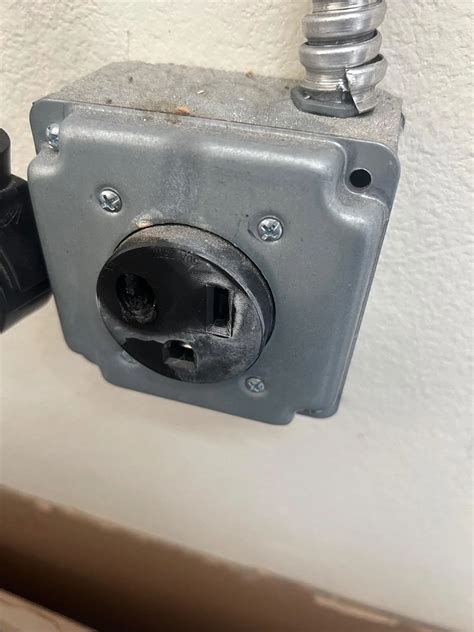

Loose Connections: Over time, the connections inside the outlet can become loose, leading to intermittent power or sparking.
Worn-Out Outlets: The contacts on the outlet can wear out, causing poor electrical contact and potential overheating.
Faulty Wiring: Damaged or improperly installed wiring can lead to a variety of issues, including power outages and electrical fires.
Overheating: If the outlet is overloaded or not properly ventilated, it can overheat, posing a fire hazard.

🛑 Note: If you encounter any issues with your 240 V outlet, it is best to consult a licensed electrician to diagnose and fix the problem safely.

Troubleshooting 240 V Outlets

If you suspect an issue with your 240 V outlet, here are some troubleshooting steps you can take:

Check the Circuit Breaker: Ensure that the circuit breaker for the outlet is not tripped. If it is, reset it and see if the outlet functions correctly.
Inspect the Outlet: Look for any visible signs of damage, such as burns, cracks, or loose connections.
Test the Outlet: Use a voltage tester to check if the outlet is receiving power. If not, the issue may be with the wiring or the circuit breaker.
Check for Overloading: Ensure that the outlet is not overloaded with too many devices or appliances.
Consult a Professional: If you are unable to identify or fix the issue, consult a licensed electrician for assistance.

Maintenance Tips for 240 V Outlets

Regular maintenance can extend the lifespan of your 240 V outlet and ensure its safe operation. Here are some maintenance tips:

Regular Inspections: Inspect the outlet and wiring regularly for any signs of damage or wear.
Clean the Outlet: Keep the outlet clean and free of dust and debris to ensure proper electrical contact.
Tighten Connections: Periodically check and tighten the connections inside the outlet to prevent loose wires.
Replace Damaged Components: Replace any damaged or worn-out components immediately to prevent further issues.
Avoid Overloading: Do not overload the outlet with too many devices or appliances.

🛠️ Note: Regular maintenance can help prevent potential hazards and ensure the safe operation of your 240 V outlet.

Comparing 240 V Outlets to Other Voltage Outlets

Understanding the differences between 240 V outlets and other voltage outlets can help you choose the right one for your needs. Here is a comparison:

Voltage	Common Uses	Amperage	Typical Outlet Types
120 V	Standard household appliances, lighting, and electronics	15-20 Amps	NEMA 5-15, NEMA 5-20
240 V	Heavy-duty appliances, electric dryers, ranges, air conditioners, and electric vehicle charging	30-50 Amps	NEMA 10-30, NEMA 14-30, NEMA 14-50, NEMA 6-50
480 V	Industrial machinery, large motors, and three-phase equipment	Varies	NEMA L14-30, NEMA L15-30

Each type of outlet has its specific applications and requirements, so it is essential to choose the right one based on your needs.

In conclusion, a 240 V outlet is a crucial component in electrical systems, providing the necessary power for heavy-duty appliances and equipment. Understanding the types, applications, installation guidelines, and safety considerations of a 240 V outlet can help ensure its safe and efficient operation. Regular maintenance and troubleshooting can also extend the lifespan of the outlet and prevent potential hazards. Whether you are a homeowner, electrician, or industrial professional, knowing how to work with a 240 V outlet is an essential skill.
