240 Electrical Plug

Understanding the intricacies of a 240 electrical plug is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. This type of plug is commonly used in industrial and commercial settings, as well as in residential applications where high-power appliances are in use. This blog post will delve into the specifics of the 240 electrical plug, including its types, applications, installation procedures, and safety considerations.

Table of Contents

Understanding the 240 Electrical Plug

A 240 electrical plug is designed to handle higher voltage and current compared to standard 120-volt outlets. This makes it ideal for powering large appliances such as electric dryers, ranges, and air conditioners. The 240 electrical plug typically comes in two main configurations: the NEMA 6-20 and the NEMA 14-30. Each of these has specific uses and requirements.

Types of 240 Electrical Plugs

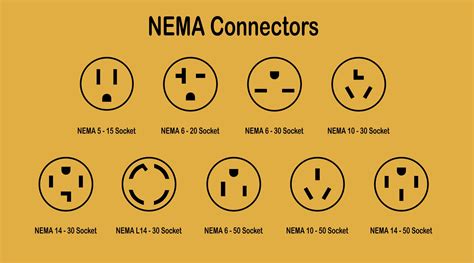

The most common types of 240 electrical plugs are the NEMA 6-20 and NEMA 14-30. Here’s a brief overview of each:

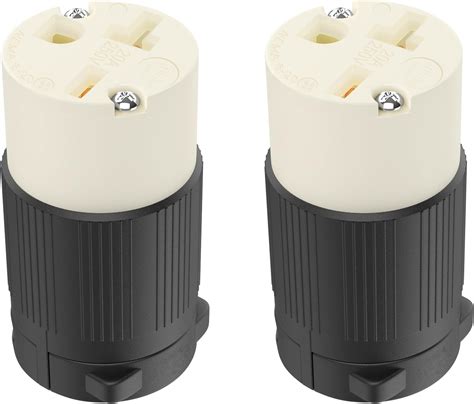

NEMA 6-20 Plug: This plug is rated for 240 volts and 20 amps. It is often used for smaller appliances that require a higher voltage but not as much current as larger appliances.
NEMA 14-30 Plug: This plug is rated for 240 volts and 30 amps. It is commonly used for larger appliances like electric dryers and ranges.

Applications of 240 Electrical Plugs

The 240 electrical plug is versatile and can be used in a variety of settings. Some of the most common applications include:

Residential Use: In homes, 240 electrical plugs are often found in laundry rooms for electric dryers and in kitchens for electric ranges and ovens.
Commercial Use: In commercial settings, these plugs are used to power large equipment such as HVAC systems, industrial machinery, and commercial kitchen appliances.
Industrial Use: In industrial settings, 240 electrical plugs are essential for powering heavy-duty machinery and equipment that require a stable and high-power supply.

Installation of 240 Electrical Plugs

Installing a 240 electrical plug requires careful planning and adherence to electrical codes. Here are the general steps involved:

Choose the Right Plug: Determine the type of 240 electrical plug you need based on the appliance you are powering.
Prepare the Wiring: Ensure that the wiring from the circuit breaker to the outlet is properly sized for the amperage of the plug. For a NEMA 14-30 plug, you will need a 10-gauge wire.
Install the Outlet Box: Mount the outlet box in the desired location, ensuring it is securely fastened to the wall studs.
Run the Wires: Run the wires from the circuit breaker to the outlet box. Make sure to follow the correct wiring diagram for your specific plug type.
Connect the Wires: Connect the wires to the terminals on the 240 electrical plug. Ensure that the ground wire is properly connected to the grounding terminal.
Secure the Plug: Secure the plug to the outlet box and tighten all screws.
Test the Connection: Turn on the circuit breaker and test the outlet with a voltage tester to ensure it is functioning correctly.

🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring. Use a non-contact voltage tester to ensure the power is off.

Safety Considerations for 240 Electrical Plugs

Working with 240 electrical plugs involves handling high voltages and currents, which can be dangerous if not done correctly. Here are some safety considerations to keep in mind:

Use Proper Tools: Always use insulated tools designed for electrical work. Avoid using metal tools that can conduct electricity.
Wear Protective Gear: Wear insulated gloves and safety glasses to protect yourself from electrical shocks and debris.
Follow Electrical Codes: Ensure that your installation complies with local electrical codes and regulations. This includes using the correct wire gauge and properly grounding the outlet.
Avoid Overloading: Do not overload the 240 electrical plug by plugging in too many appliances or using appliances that exceed the plug’s rating.

Troubleshooting Common Issues with 240 Electrical Plugs

Even with proper installation, issues can arise with 240 electrical plugs. Here are some common problems and their solutions:

No Power: If the plug is not providing power, check the circuit breaker to ensure it has not tripped. Also, verify that the wires are properly connected and that there are no loose connections.
Intermittent Power: Intermittent power issues can be caused by loose wires or a faulty plug. Tighten all connections and replace the plug if necessary.
Overheating: If the plug or outlet is overheating, it may be due to overloading or a faulty connection. Unplug any excess appliances and check for loose wires.

🔧 Note: If you are unsure about any aspect of the installation or troubleshooting process, consult a licensed electrician to avoid potential hazards.

Maintenance Tips for 240 Electrical Plugs

Regular maintenance of 240 electrical plugs can extend their lifespan and ensure safe operation. Here are some maintenance tips:

Inspect Regularly: Periodically inspect the plug and outlet for any signs of damage, such as cracks, burns, or loose connections.
Keep Clean: Keep the area around the plug clean and free of debris. Dust and dirt can accumulate and cause overheating.
Avoid Moisture: Ensure that the plug and outlet are not exposed to moisture, as this can cause short circuits and electrical shocks.
Replace When Necessary: If the plug shows signs of wear or damage, replace it immediately to avoid potential hazards.

Common Mistakes to Avoid with 240 Electrical Plugs

When working with 240 electrical plugs, it’s important to avoid common mistakes that can lead to safety issues or malfunctioning equipment. Here are some mistakes to avoid:

Incorrect Wire Gauge: Using the wrong wire gauge can lead to overheating and potential fires. Always use the correct wire gauge for the amperage of the plug.
Improper Grounding: Failing to properly ground the outlet can result in electrical shocks. Ensure that the ground wire is securely connected to the grounding terminal.
Overloading the Plug: Plugging in too many appliances or using appliances that exceed the plug’s rating can cause overheating and potential fires.
Ignoring Safety Precautions: Always follow safety precautions, such as turning off the power and using insulated tools, to avoid electrical shocks and injuries.

🔧 Note: If you are unsure about any aspect of the installation or troubleshooting process, consult a licensed electrician to avoid potential hazards.

Conclusion

Understanding the 240 electrical plug is essential for anyone working with high-power electrical systems. Whether you are installing a new plug, troubleshooting an existing one, or performing regular maintenance, following the guidelines and safety considerations outlined in this post will help ensure a safe and efficient electrical setup. By choosing the right plug, following proper installation procedures, and adhering to safety guidelines, you can effectively manage the power needs of your appliances and equipment.
